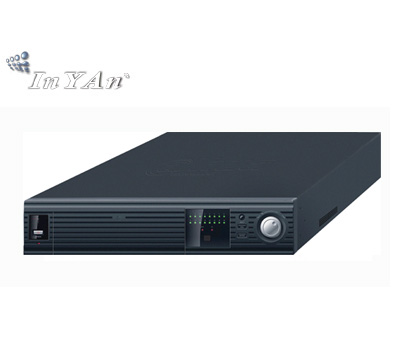

SADVR 4004LB:4 Channel Real Time Operating System
SADVR 4008LB:8 Channel Real Time Operating System
SADVR 4012LB:4 Channel Real Time Operating System
SADVR 4016LB:8 Channel Real Time Operating System
Playback Resolution: HD1,2CIF,CIF
Advanced MPEG-4/H.264 Compression Algorithm, with Higher Image Quality and Lower Bite Rate
Secure and Reliable Embedded Linux Operation System
Stable Video & Audio Synchronization
Advanced Potential HDD Capacity Expansion
User-friendly Graphic Menu Interface with Operation Tips
Advanced File Management System with Full Intellectual Right
Unique USB Mouse Control
Independent Hardware Compression for Each Channel
Backup via CD/DVD-RW, USB and Network
Standby Mode for Non-working HDDs
Quadruple Operation: Live View, Record, Playback and Network Transfer Simultaneously
Multi-recording Mode (Manual, Schedule, Alarm and Motion Detection)
Pre-/after-event recording in Motion Detection and External Alarm Recording Modes
Full Remote System Access, Monitoring, Playback, Configuration, Searching and Backup through Network
Power Authorization-based User Management System
|
Model |
SADVR 4004LB |
SADVR 4008LB |
|
Operation system |
Embedded Linux Operation System |
Embedded Linux Operation System |
|
Video input |
4 channels composite video input (NTSC/PAL) BNC（1.0VP- P, 75Ω） |
8 channels composite video input (NTSC/PAL) BNC（1.0VP- P, 75Ω） |
|
Video output |
1 channel PAL/NTSC, BNC （1.0VP- P, 75Ω）composite video output；1channel VGA output |
1 channel PAL/NTSC, BNC （1.0VP- P, 75Ω）composite video output；1channel VGA output |
|
Audio input |
4 channels audio input 200-2500mv30KΩ(BNC) |
8 channels audio input 200-2500mv30KΩ(BNC) |
|
Audio output |
1 channel audio output3500mv30KΩ(BNC) |
1 channel audio output3500mv30KΩ(BNC) |
|
Screen Division |
1, 4, windows display |
1, 4, 9 windows display |
|
Video format: |
PAL（625line, 50f/s）, NTSC（525line, 60f/s） |
PAL（625line, 50f/s）, NTSC（525line, 60f/s） |
|
System resource |
Multi-tasking operation for multi-channel real time display, recording, playback, network operations simultaneously |
Multi-tasking operation for multi-channel real time display, recording, playback, network operations simultaneously |
|
Image resolution |
Monitor: PAL/NTSC 704X288/704X240；Playback: 704X288/704X240, 352X576/352X480, 352X288/352X240 |
Monitor: PAL/NTSC 704X288/704X240；Playback: 704X288/704X240, 352X576/352X480, 352X288/352X240 |
|
Motion detection |
192(16X12) configurable detection areas per channel, with programmable sensitivity and threshold settings. |
192(16X12) configurable detection areas per channel, with programmable sensitivity and threshold settings. |
|
Video compression |
MPEG-4/H.264(CBR/VBR) |
MPEG-4/H.264(CBR/VBR) |
|
Audio compression |
ADPCM/PCM |
ADPCM/PCM |
|
Frame rate |
PAL: 1f/s-25f/s per channel configurable；NTSC1f/s-30f/s per channel configurable |
PAL: 1f/s-25f/s per channel configurable；NTSC1f/s-30f/s per channel configurable |
|
Image quality |
6 levels configurable |
6 levels configurable |
|
Hard disk |
4 IDE ports for a maximum of 8 large capacity HDDs |
4 IDE ports for a maximum of 8 large capacity HDDs |
|
HDD space occupation |
Audio：ADPCM14.4Mbyte/h; PCM28.8Mbyte/hVideo：40～2000Mbyte/h |
Audio：ADPCM14.4Mbyte/h; PCM28.8Mbyte/hVideo：40～2000Mbyte/h |
|
Alarm input |
8 channels alarm input |
8 channels alarm input |
|
Alarm output |
3 channels alarm output, including 1 controllable +12V output |
3 channels alarm output, including 1 controllable +12V output |
|
Alarm relay |
30VDC 1A, 125VAC0.5A（relay output） |
30VDC 1A, 125VAC0.5A（relay output） |
|
Network connection |
RJ45 10M/100M Ethernet port |
RJ45 10M/100M Ethernet port |
|
Pan-tilt control port |
RS485, RS232 |
RS485, RS232 |
|
Power |
220 V±25%50 HZ±2%/110V, 60HZ |
220 V±25%50 HZ±2%/110V, 60HZ |
|
Power consumption (without HDD) |
40W(±3W) |
40W(±3W) |
|
Working temperature |
-10℃-+55℃ |
-10℃-+55℃ |
|
Working humidity |
10℅-90℅ |
10℅-90℅ |
|
Barometric pressure |
86kpa-106kpa |
86kpa-106kpa |
|
Size |
2U standard industrial case, 441(W)x460(L)x89(H) mm |
2U standard industrial case, 441(W)x460(L)x89(H) mm |
|
Weight |
7KG（without HDD） |
7KG（without HDD） |
|
Model |
SADVR 4012LB |
SADVR 4016LB |
|
Operation system |
Embedded Linux Operation System |
Embedded Linux Operation System |
|
Video input |
12 channels composite video input (NTSC/PAL) BNC（1.0VP- P, 75Ω） |
16 channels composite video input (NTSC/PAL) BNC（1.0VP- P, 75Ω） |
|
Video output |
1 channel PAL/NTSC, BNC （1.0VP- P, 75Ω）composite video output；1channel VGA output |
1 channel PAL/NTSC, BNC （1.0VP- P, 75Ω）composite video output；1channel VGA output |
|
Audio input |
12 channels audio input 200-2500mv30KΩ(BNC) |
16 channels audio input 200-2500mv30KΩ(BNC) |
|
Audio output |
1 channel audio output3500mv30KΩ(BNC) |
1 channel audio output3500mv30KΩ(BNC) |
|
Screen Division |
1, 4, 9,13 windows display |
1, 4, 9,13,16 windows display |
|
Video format: |
PAL（625line, 50f/s）, NTSC（525line, 60f/s） |
PAL（625line, 50f/s）, NTSC（525line, 60f/s） |
|
System resource |
Multi-tasking operation for multi-channel real time display, recording, playback, network operations simultaneously |
Multi-tasking operation for multi-channel real time display, recording, playback, network operations simultaneously |
|
Image resolution |
Monitor: PAL/NTSC 704X288/704X240；Playback: 704X288/704X240, 352X576/352X480, 352X288/352X240 |
Monitor: PAL/NTSC 704X288/704X240；Playback: 704X288/704X240, 352X576/352X480, 352X288/352X240 |
|
Motion detection |
192(16X12) configurable detection areas per channel, with programmable sensitivity and threshold settings. |
192(16X12) configurable detection areas per channel, with programmable sensitivity and threshold settings. |
|
Video compression |
MPEG-4/H.264(CBR/VBR) |
MPEG-4/H.264(CBR/VBR) |
|
Audio compression |
ADPCM/PCM |
ADPCM/PCM |
|
Frame rate |
PAL: 1f/s-25f/s per channel configurable；NTSC1f/s-30f/s per channel configurable |
PAL: 1f/s-25f/s per channel configurable；NTSC1f/s-30f/s per channel configurable |
|
Image quality |
6 levels configurable |
6 levels configurable |
|
Hard disk |
4 IDE ports for a maximum of 8 large capacity HDDs |
4 IDE ports for a maximum of 8 large capacity HDDs |
|
HDD space occupation |
Audio：ADPCM14.4Mbyte/h; PCM28.8Mbyte/hVideo：40～2000Mbyte/h |
Audio：ADPCM14.4Mbyte/h; PCM28.8Mbyte/hVideo：40～2000Mbyte/h |
|
Alarm input |
8 channels alarm input |
8 channels alarm input |
|
Alarm output |
3 channels alarm output, including 1 controllable +12V output |
3 channels alarm output, including 1 controllable +12V output |
|
Alarm relay |
30VDC 1A, 125VAC0.5A（relay output） |
30VDC 1A, 125VAC0.5A（relay output） |
|
Network connection |
RJ45 10M/100M Ethernet port |
RJ45 10M/100M Ethernet port |
|
Pan-tilt control port |
RS485, RS232 |
RS485, RS232 |
|
Power |
220 V±25%50 HZ±2%/110V, 60HZ |
220 V±25%50 HZ±2%/110V, 60HZ |
|
Power consumption (without HDD) |
45W(±3W) |
45W(±3W) |
|
Working temperature |
-10℃-+55℃ |
-10℃-+55℃ |
|
Working humidity |
10℅-90℅ |
10℅-90℅ |
|
Barometric pressure |
86kpa-106kpa |
86kpa-106kpa |
|
Size |
2U standard industrial case, 441(W)x460(L)x89(H) mm |
2U standard industrial case, 441(W)x460(L)x89(H) mm |
|
Weight |
7.3KG（without HDD） |
7.3KG（without HDD） | |
