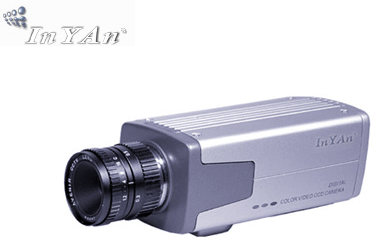

Model:

AC-115EB

AC-115HB

Image Sensor :

1/3” SONY Super HAD CCD

1/3” SONY Super HAD CCD

Effective Pixels :

PAL: 500(H)*582(V)

NTSC : 510(H)*492(V)

Sensing Area :

4.9mm*3.7mm

4.9mm*3.7mm

Signal System:

PAL/NTSC

PAL/NTSC

Horizontal Resolution:

470TV Line

470TV Line

Lens Mount:

CS/C Mount(optional )

CS/C Mount(optional )

Mini Illumination:

0.05Lux/F1.2

0.05Lux/F1.2

Gain Control:

ON/OFF

ON/OFF

Back Light Compensation:

ON/OFF

ON/OFF

Electronic Shutter :

ON/OFF

ON/OFF

Shutter Speed:

1/50—1/100,000 second

1/50—1/100,000 second

Auto Iris Lens :

VIDEO/DC (optional)

VIDEO/DC (optional)

White Balance :

Auto Tracking White Balance

Auto Tracking White Balance

S/N Ratio:

more than 48dB (AGC OFF)

more than 48dB (AGC OFF)

Color –B/W

Auto

Auto

Sync.System:

Internal

Internal

Video Output:

1.0Vp-p.75Ω(BNC)

1.0Vp-p.75Ω(BNC)

Power Supply:

DC12V

DC12V

Power Consumption:

Less than 2.8W

Less than 2.8W

Video Out :

VIDEO OUT (BNC)

VIDEO OUT (BNC)

Dimension/mm:

115*58*50

115*58*50

Weight(g):

250g

250g
