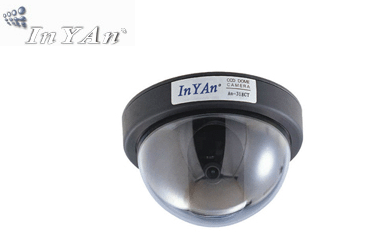

Model:

AC-315BL

AC-315BP

AC-315BF

Image Sensor :

1/3” LG CCD

1/3” SONY Super HAD CCD

Effective Pixels :

CCIR:500(H)*582(V)

EIA: 510(H)*492(V)

CCIR:752(H)*582(V)

   EIA: 768(H)*494(V)

Sensing Area :

4.9mm*3.7mm

Signal System:

PAL/NTSC

Horizontal Resolution:

420TV Line

480TV Line

600TV Line

Lens Mount:

3.6mm,6mm,8mm,12mm

Mini Illumination:

0.5 Lux/F1.2

Back Light Compensation:

 Built-in

Shutter Speed:

1/50—1/100,000 second

White Balance :

Auto Tracking White Balance

S/N Ratio:

more than 48dB (AGC OFF)

Video Output:

1.0Vp-p.75Ω(BNC)

Power Supply:

DC12V/500mA

Power Consumption:

Less than 2.8W

Video Out :

VIDEO OUT (BNC)

Dimension/mm:

￠118.5mm*74.2mm

Weight(g):

220g
